300 HP - Model-specific elements

SPECIFICATIONS

Model Weight Shaft Length

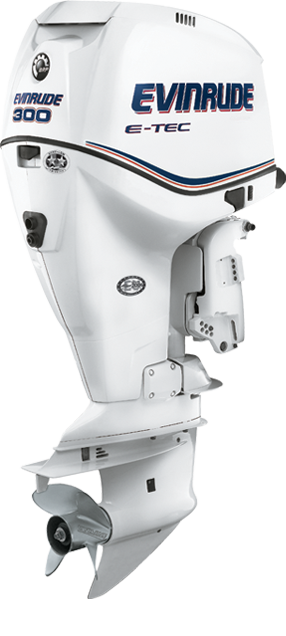

E300DCX 528 lbs / 239 kgs 25" / 635 mm
Color White
Model Gear Ratio 1.85:1
Starting Method Electric
Trim Method FasTrak™ Power Trim and Tilt
Trim Range -6˚ to 15˚
Tilt Range 75˚
Counter Rotation Yes
Controls Mechanical /ICON EST Digital Accessory
Steering Remote

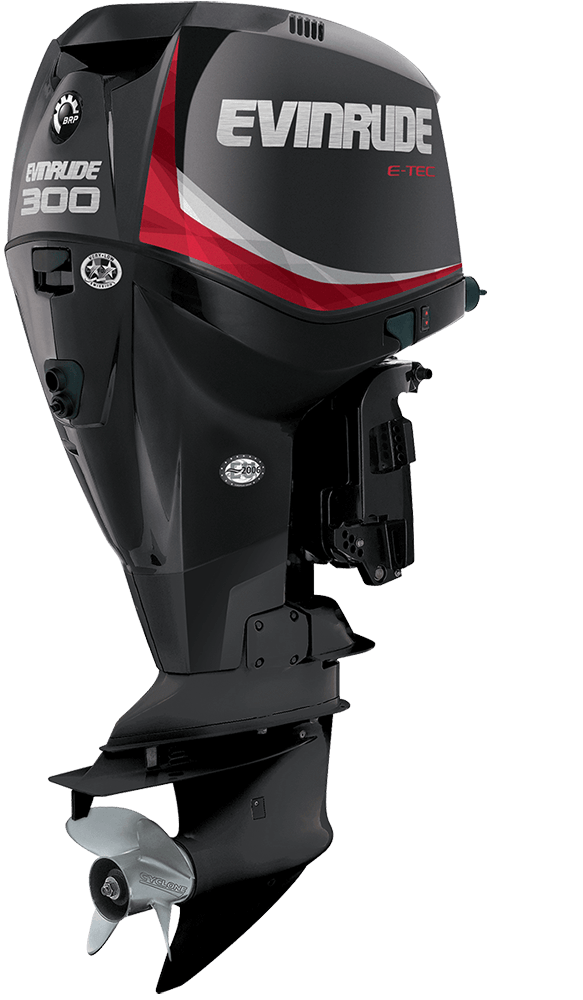

E300DGX 528 lbs / 239 kgs 25" / 635 mm
Color Graphite
Model Gear Ratio 1.85:1
Starting Method Electric
Trim Method FasTrak™ Power Trim and Tilt
Trim Range -6˚ to 15˚
Tilt Range 75˚
Counter Rotation No
Controls Mechanical /ICON EST Digital Accessory
Steering Remote
E300DPX 528 lbs / 239 kgs 25" / 635 mm
Color White
Model Gear Ratio 1.85:1
Starting Method Electric
Trim Method FasTrak™ Power Trim and Tilt
Trim Range -6˚ to 15˚
Tilt Range 75˚
Counter Rotation No
Controls Mechanical /ICON EST Digital Accessory
Steering Remote
E300DSL 522 lbs / 237 kgs 20" / 508 mm
Color White
Model Gear Ratio 1.85:1
Starting Method Electric
Trim Method FasTrak™ Power Trim and Tilt
Trim Range -6˚ to 15˚
Tilt Range 75˚
Counter Rotation No
Controls Mechanical /ICON EST Digital Accessory
Steering Remote

Common Elements

Limited Warranty 5 Year
Engine type V6 90° E-TEC D.I.
Displacement 210 cu in/ 3441 cc/ 3.4L
Recommended fuel 87 Octane
Emissions compliance EPA 2013 CARB 2 STAR European Union
Recommended Oil Evinrude/ Johnson XD-100 Oil
Oil Tank capacity Accessory 1.8/ 6.8L & 3 gal 11.3 L Tank Available
Full Throttle RPM Range 5300-6000 RPM
Alternator output 133 Amps Total/ 50 Net Dedicated
Fuel induction E-TEC Direct Injection w/stratified low RPM combustion mode
Lubrication Multi-Point Targeted Oiling
Bore x Stroke 3.854 x 3.000 in / 98 x 76 mm
Mounting Centers Minimum 26 in/ 660 mm
Integrated Features
Controls Mechanical/ICON EST Digital Accessory
